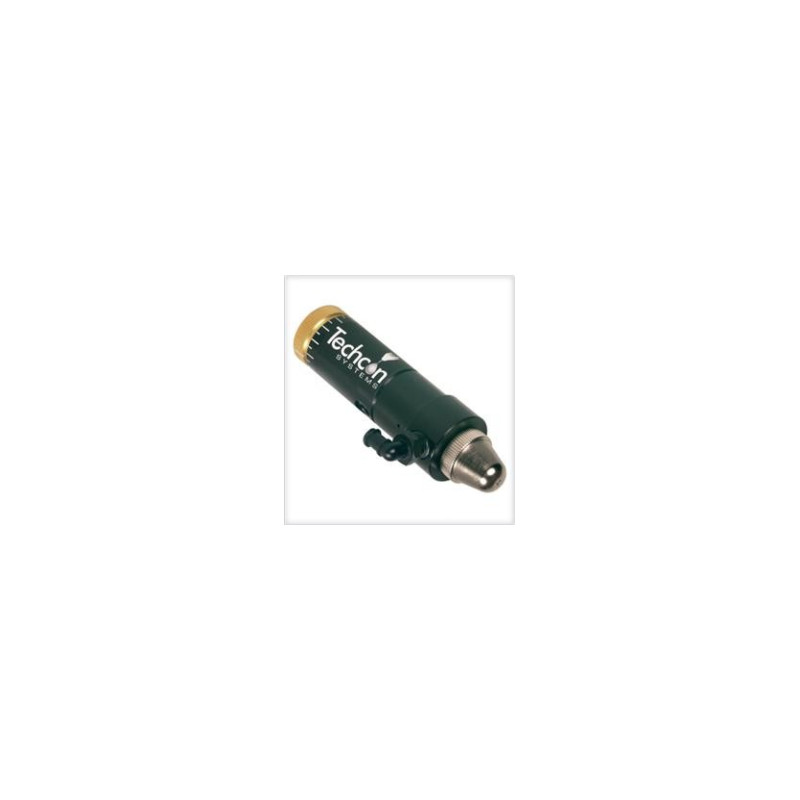

The Spray Valves are designed for precise spray applications of low viscosity materials. An external stroke control makes it easy for the operator to fine-tune fluid flow. Total control of the spray cycle is provided by adjustable fluid flow and precise control of prespray, atomizing air and post spray with the TS500R Multi-Purpose Digital Controller. Maintenance is made simple by the elimination of troublesome spring loaded needle packings. Downtime is virtually eliminated with only one seal to replace during normal maintenance.
Product Comprises of:- Mounting bracket kit
- Valve air hoses
- Luer lock fluid line
- Fluid inlet fittings - 1/4'' compression and Luer lock type
Key Features and Benefits:- Consistent spray coverage
- No overspray
- Positive shut-off
- Adjustable flow control
Technical Specifications:- Fluid Inlet Port: 1/8'' NPT female
- Fluid Outlet Port: Spray Cap
- Aux Air Inlet Port: 10-32 UNF
- Activation Pressure: 70 psi (4.8bar) Min
- Max Fluid Pressure: 100 psi (6.9bar)
- Mounting Port: ¼-20 UNC-2B
- Viscosity Range: 1-1 000cps
- Wetted Parts: 303 SS, Teflon, Aluminum
- Operating Frequency: 400+ cycles/min
