Vitralit® UD 8052 F is a one component, no flow, UV/visible light and humidity curing isocyanate acrylate adhesive. The base material is transparent and slightly yellow. Customized versions with various colors are possible and make process control easier.
Vitralit® UD 8052 F is specially designed as a flexible encapsulant for local circuit board protection. Its jetting dispensability and fast cure properties make it especially suitable for applications in consumer electronics, where high UPH value is required. Thanks to the humidity curing mechanism, Vitralit® UD 8052 F can also be cured in shadowed areas. UV cure provides initial properties and the humidity post cure leads to an increasing performance over time.
Technical dataViscosity (mPas): 8.000 - 11.000
Density (g/cm³): 1,1
Flash point (°C): >100
Refractive index (nD20): 1,4946

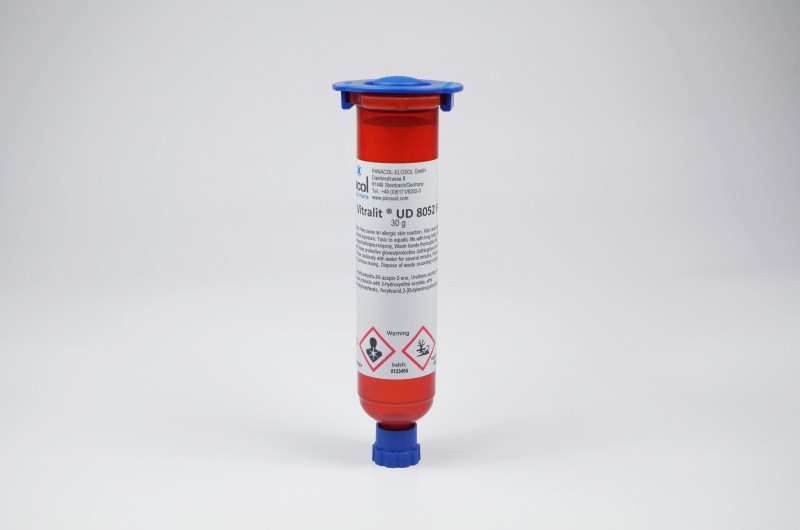

PANACOL Vitralit UD 8052 F
