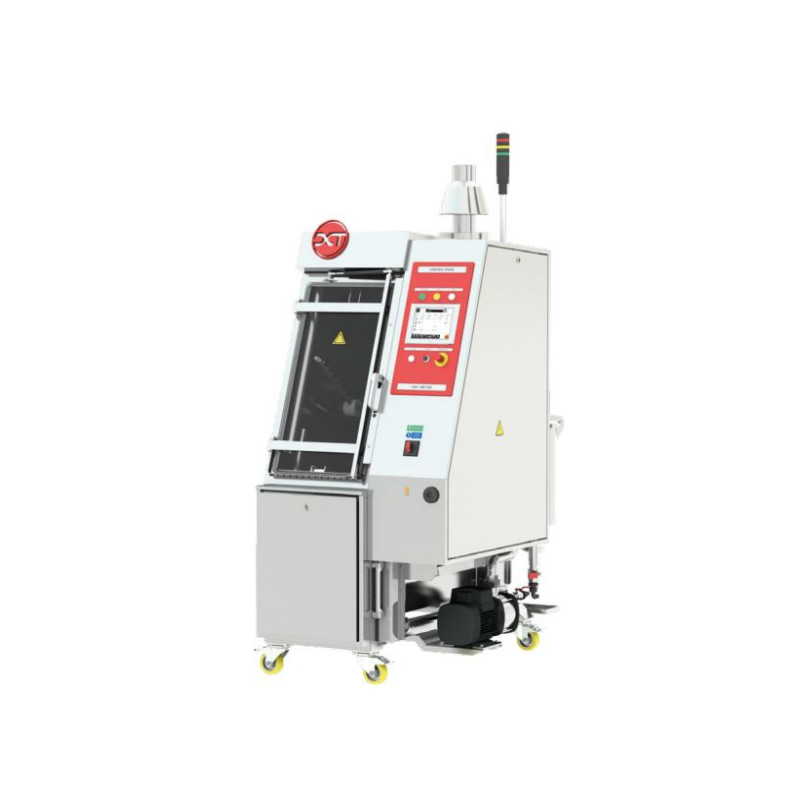

INJET cleaning machines are using
high pressure spray-in-air technology
for cleaning and rinsing process.
They are built as one- or multichamber
devices, due to requested
application and needed cleaning
capacity.

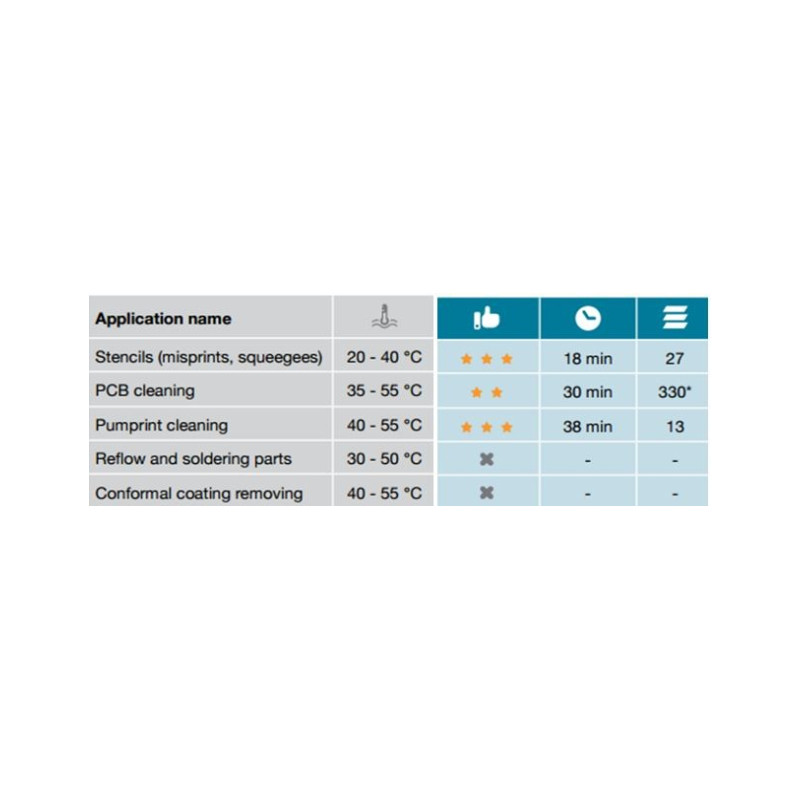

This technology is very effective for
wide range of parts to clean as a
stencils, misprinted PCBs, squeegees,
pumprints, soldered PCBs
and also maintenance parts cleaning
applications.
Available as a vertical or horizontal
spraying device, with large portfolio
of options which can be add due to
customer request, needed capacity
or level of final cleanness.
Number of chambers: 1

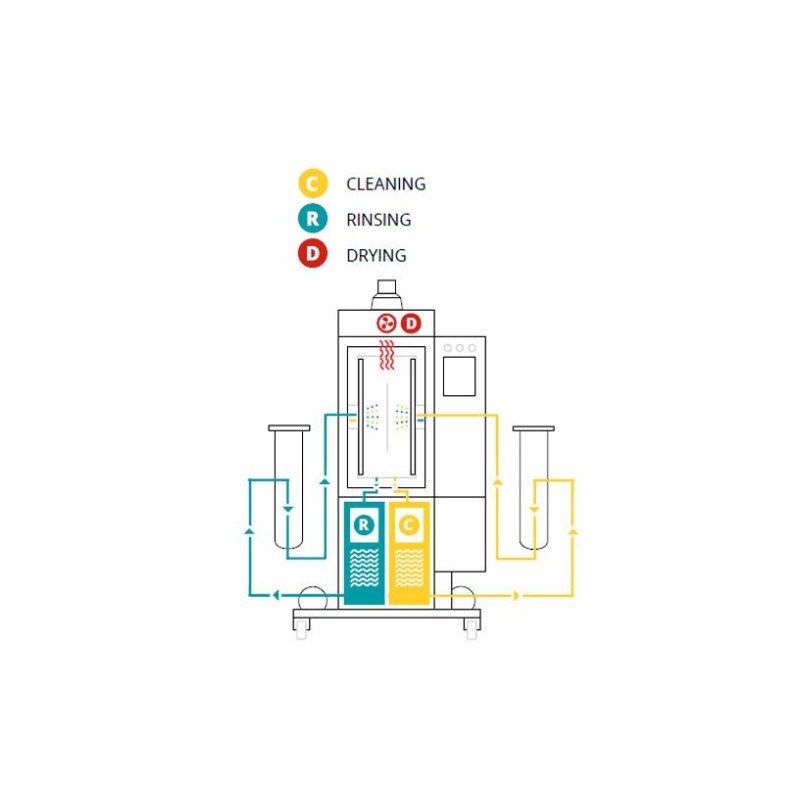

Processes: cleaning / rinsing / drying
Device dimensions: 1050 x 1325 1850 mm
Max. dimension of cleaned part: 190 x 860 x 790 mm
Weight (without cleaning fluids): 350 kg
Internal mechanical filtration: cleaning: 20 - 100 µm, rinsing: 5 - 20 µm
Flow rate | pressure of cleaning fluid: 125l/min / 2 Bar
Cleaning fluid consumption (per 1 cycle): 0,05 - 0,3l
