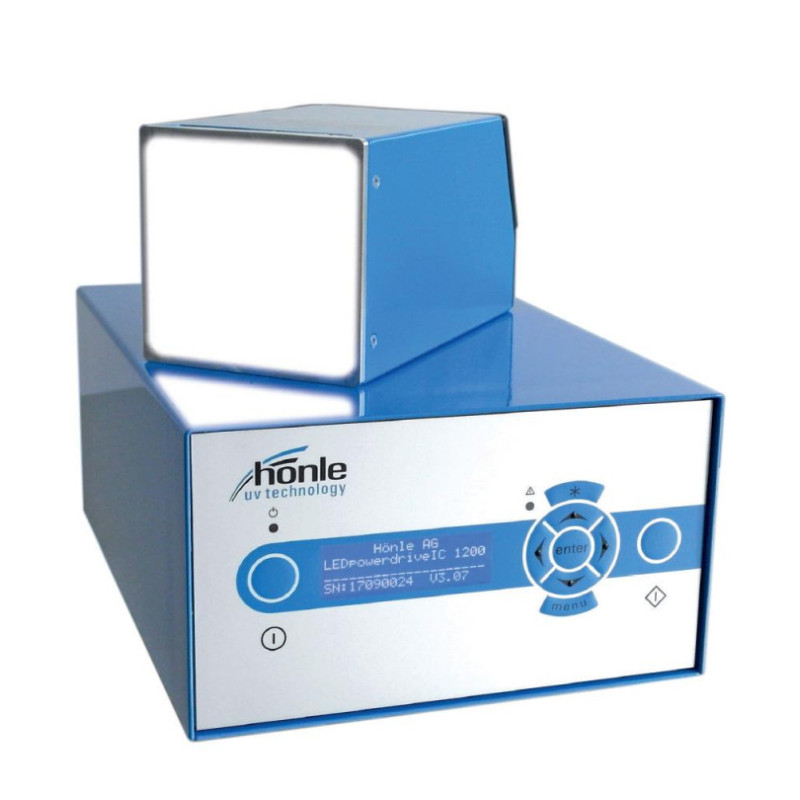

LED Spot 100 HP IC has been developed for all applications requiring a highly intensive UV irradiance over a large area. It produces up to 3.000 mW/cm2
of UV light intensity. The LED assembly, as well as an electronic power control, guarantee high intensity and homogenous distribution of light. The recognition of LED-malfunction and a comprehensive monitoring function provide for very high process stability. So, especially in fully automated production lines, repeatable results can be realised even in shortest cycle times.
The square light emitting aperture has a size of 100 mm x 100 mm. Depending on the selected intensity/ homogeneity it can be increased considerably by changing the distance to the substrate. For even bigger irradiation fields, several LED Spots 100 HP IC can be connected without gaps. An integrated fan provides adequate cooling even for continuous operation.
The LED Spot 100 IC controlled by LED powerdrive IC is appropriate for various applications, such as
- Bonding, fixing or encapsulating of components in the electronic, optical or medical sector
- Fluorescence stimulation for materials testing and picture processing
- High-intensity UV irradiation in the chemical, biological and pharmaceutical sector
