Alutec Robotics offers customised machines tailored for the specific needs of customers, both in stand-alone version (also with automated loading and unloading systems) and configured to be installed on an automation line (even a pre-existing one). Movements are performed by Cartesian axes systems with GANTRY structure and three and four interpolated axes (X-Y-Z-R). The machines are supplied complete with structure, wired electrical cabinet, safety guards and EC type-approvals.The work area can be customised from 400x400mm to 2000x3000mm, with the possibility to work on the specific work surface of the customer, on automation lines and on piece loading-unloading trolleys.The performances of the machines are modulated according to the specific application requirements of the customer; it is possible to handle up to 15 kg on the vertical axis, with speeds of up to 1000mm/s, guaranteeing excellent precision and repeatability.The meticulous design ensures solutions that match the customers’ expectations.The custom machines of Alutec Robotics are controlled by the groundbreaking motion control system called ALPHA by Alutec Robotics, which, combined with the new proprietor software ALPHA, guarantees reference performances and new functions, for both stand-alone operation and for the communication of the robot with external systems (CANopen , serial RS232 or with 16 general purpose input/Output board, which are available even in the standard version). The robot is programmed via the PC and subsequently controlled via the master line or the operator panel ALPHA, which can manage up to 255 programs and 100.000 processing points; It is able to control external systems (e.g. loaders-unloaders) and a number of applications.The user-friendly graphic interface, the possibility to import files in .dxf, Gerber or Excel format and the new SUB-PROGRAMS function allow you to fulfil extremely complex operations, very quickly.The custom machines of Alutec Robotics are the ideal solution for simple or complex dispensing, screwing, soldering or pick & place applications. Flexibility and design rapidity ensure the customer prompt responses.By supervising the whole design and mechanical, electronic and software realization, we are able to guarantee the quality and reliability of the solutions offered.

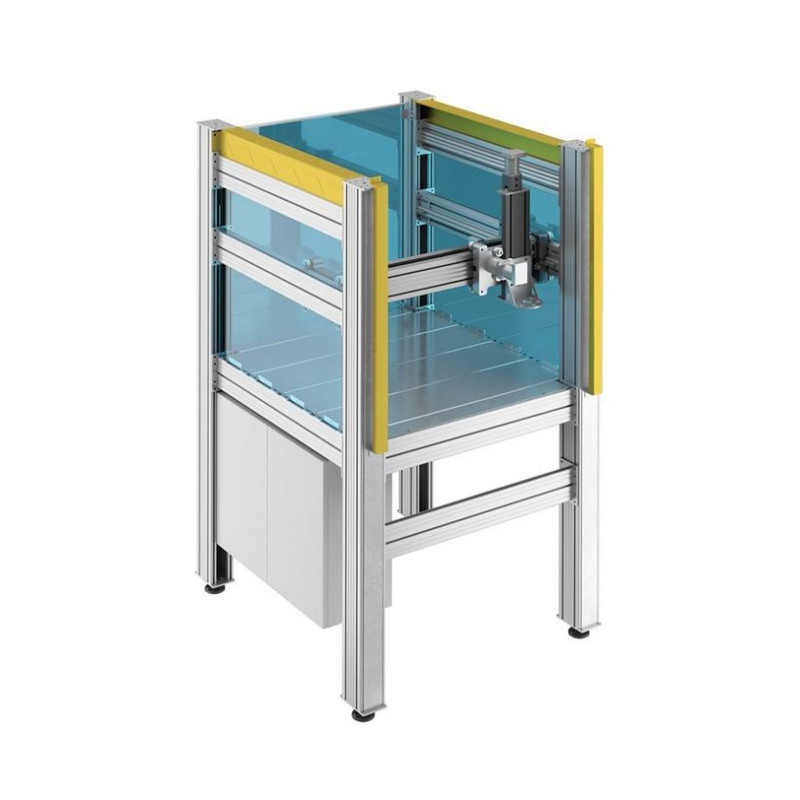

Technical Data - Axes Motion System: Interpolated 3-axes cartesian system with bipolar stepper motors
- Operating Range: X 500 mm; Y 500 mm; Z 150 mm
- Programming: Remote mode (self-learning) through PC software, Profiles imported from DXF, Excel and Gerber files
- Interpolation: Linear and 3D circular on X,Y,Z Point-to-point and Continuous path
- Control: ALPHA CP RS232 CanOpen® I/O
- Available I/O: 16 I/O General purpose
- PTP Speed: 1-400 mm/sec X, Y, Z
- Transportable Load Tool: 10 kg
- Repeatability: ±0,1 mm
- Axis Motions System: 0,08 μm
- Dimensions: 1300x1100x1950 mm
- Weight: 80kg (approx)
